Color Double Glass Solar Panel/ BIPV

Color Double Glass Solar Panel/ BIPV

Color solar panel conventional facades made of plaster, aluminum.marble or any other material can be harmoniously replaced by Colored BIPV building elements.

Colored glaze integrates photovoltaic power generation technology and architectural glass production technology. It is a new type of energy-saving power generation building material for green and low-carbon buildings. It can be used as daylighting windows, daylighting roofs and building exterior walls. The products have Class A fire protection, a variety of colors and imitation stone The texture appearance is more in line with the architectural aesthetics.

Products details

Coloured Glaze Double Glass Solar panel



The exterior wall of colored crystalline silicon power generation can perfectly hide the cells, and can replace the decorative surface of curtain walls and exterior walls.

The product adopts high-transparency nano-membrane color technology, which has four advantages:

1) The color saturation and lightness are higher and more transparent

2) The color is more durable and stable

3) Higher light transmittance and higher power generation efficiency.

4) Meet the photovoltaic industry certification standards at the same time, and the output power for 25 years is not less than 80%



Typical performances of modules using our film are shown in the flowing table:

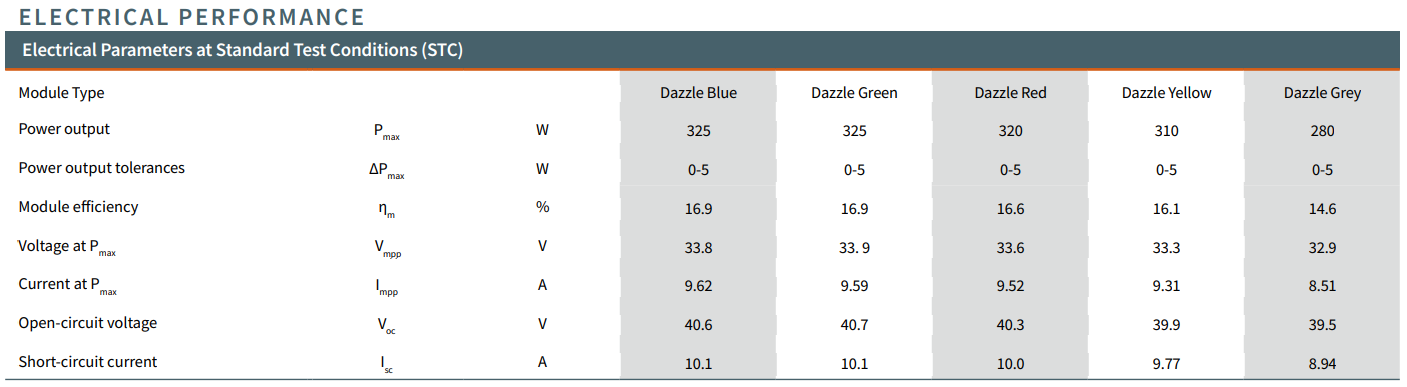

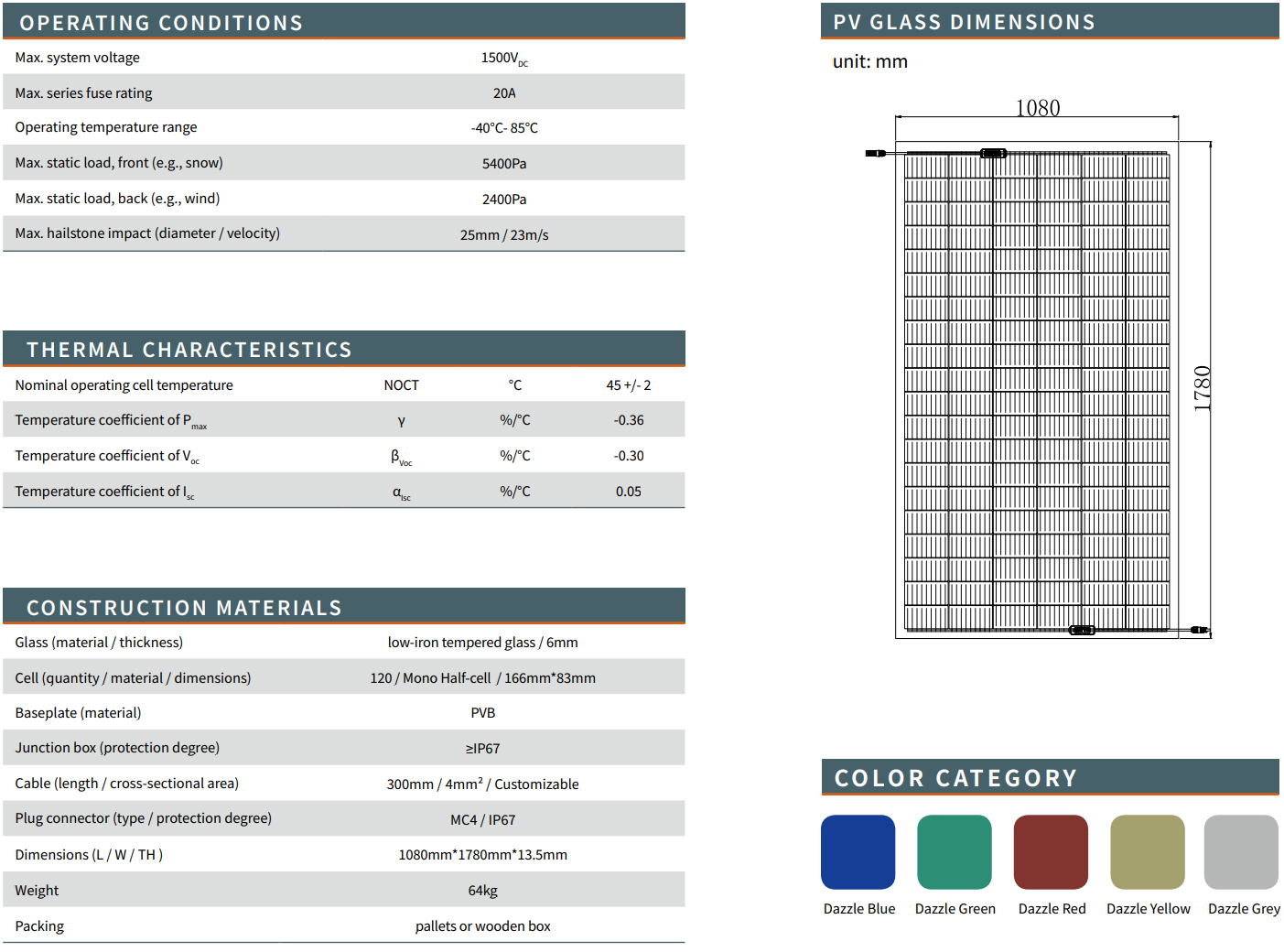

Standard Technical Data For Reference



STC: 1000W/m2 irradiance, 25°C cell temperature, AM1.5g spectrum according to EN 60904-3.

Average relative efficiency reduction of 3.0% at 200W/m2 according to EN 60904-1.



Why Chose Optimum Sun

1. Top quality with competitive price - We have complete production line to control the cost and quality

2. Warranty time- Offer customer more than 12 years warranty time, 30 years service life

3. Customer design- Customer size

4. Customer color- Can be blue, yellower, red ect. just send use the color coded.

5. Customer thickness- Thickness of glass can be 2.5mm, 3.2mm, 4.0mm, 6.0mm or other

4. Certificate- CQC, CE, ICE, TUV , UL

5. Fast delivery - Have more than 3 prodution line can finished order fast time



Complete production line
