ACDC Solar Air Conditioner
ACDC Solar Air Conditioner
ACDC On grid solar air conditioner wall split type, the power from solar panel priority supply directly to indoor&outdoor fan motor and compressor.
Hybrid solar-powered air conditioners can run on both DC and AC at the same time, seamlessly. Such units can be connected to both the solar panels/batteries directly and to the grid at the same time. The unit can then use the appropriate power source according to the time of day and power load.
Products details
ACDC Solar Air Conditioner / On Grid Solar Air Conditioner
On grid solar air conditioner connect solar panel and grid power in same time, When the solar power is not sufficient, by equipped with dual PV MPPT tracking system, the system automatically switch to run by grid power
Advantage of ACDC solar air conditioner
AC/DC dual power supply
High energy efficiency: maximum up to SEER 36;
Even if there is no sunshine, up to SEER 21.
Convenient and quick installation, no longer require solar controller, battery and inverter
Using solar power priority, solar power utilization rate more than 95%
Solar power/grid power supply interaction, achieve uninterrupted power supply;
Wide voltage design, free combination of solar panels, not limited by installation place.
Compliant to all climate condition.(T1 & T3)

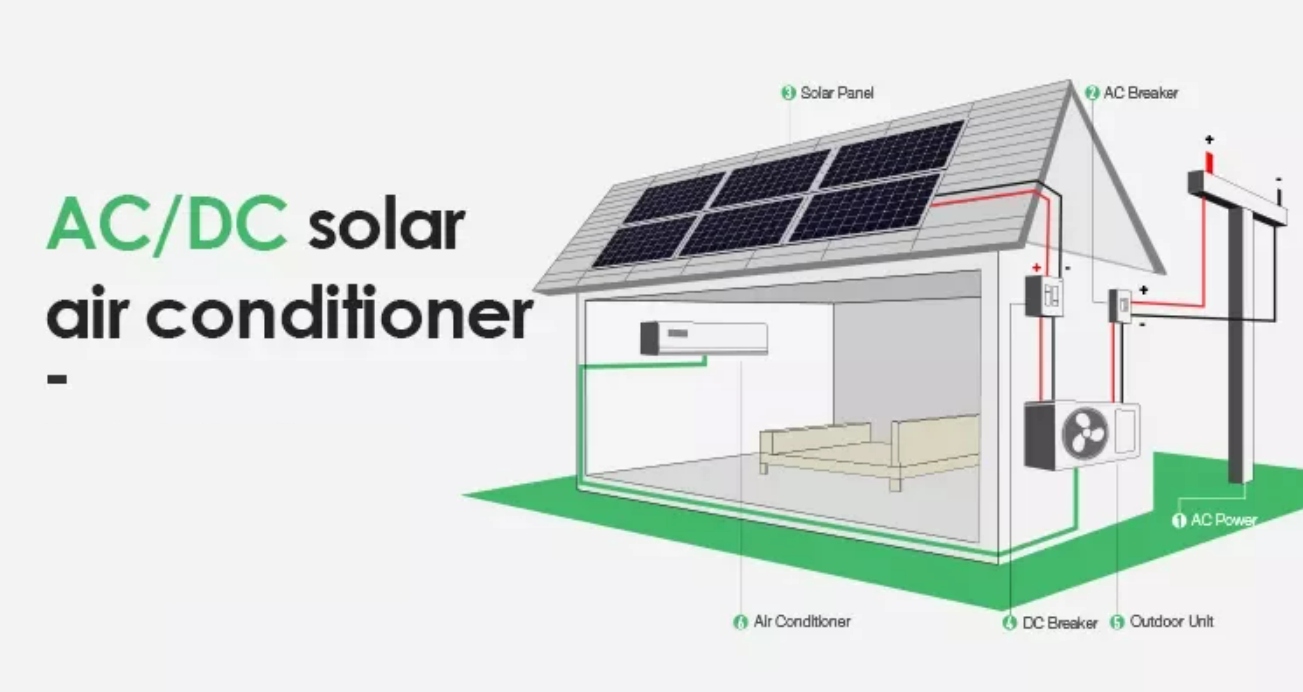

Working principle of ACDC solar air conditioner
Technical Data Parameters of ACDC solar air conditioner
|
Technical Data Parameters on grid solar air conditioner |
||||||
|
Model |
KFR-26GW/BPSA |
KFR-35GW/BPSA |
KFR-50GW/BPSA |
KFR-70GW/BPSA |
||
|
AC Power supply |
Ph-V-Hz |
220-240V~ 50/60HZ |
220-240V~ 50/60HZ |
220-240V~ 50/60HZ |
220-240V~ 50/60HZ |
|
|
DC Power supply |
V |
DC50-380V |
DC50-380V |
DC50-380V |
DC50-380V |
|
|
Rated Cooling |
Capacity |
Btu/h |
9000(3500-11000) |
12000(3700-14000) |
18000(6200~20900) |
24000(9100-26900) |
|
Cooling Power input |
W |
100-1240 |
100-1580 |
140~2360 |
240-3030 |
|
|
Cooling Current |
A |
0.4-5.4 |
0.4-6.9 |
0.6~10.3 |
1.0-13.2 |
|
|
Rated Heating |
Capacity |
Btu/h |
10000(2800-11500) |
13000(3000-14400) |
19000(4700~23000) |
25000(5500-30000) |
|
Heating Power input |
W |
120-1200 |
130-1510 |
200~2410 |
260-3140 |
|
|
Heating Current |
A |
0.5-5.2 |
0.6-6.6 |
0.9~10.5 |
1.1-13.7 |
|
|
Indoor air flow (Hi/Mi/Lo) |
m3/h |
420/320/270 |
570/470/370 |
840/680/540 |
980/800/640 |
|
|
Indoor sound pressure level (Hi/Mi/Lo/Si) |
dB(A) |
40/34/29.5/25 |
41/36/28/23 |
47/40/35/25 |
45/39/34/27 |
|
|
Indoor unit |
Dimension(W*D*H) |
mm |
805x194x285 |
805x194x285 |
957x213x302 |
1040×220×327 |
|
Packing (W*D*H) |
mm |
870x270x360 |
870x270x360 |
1035x295x380 |
1120x405x310 |
|
|
Net/Gross weight |
Kg |
7.2/9.6 |
7.2/9.6 |
9.5/12.5 |
11.9/15.2 |
|
|
Outdoor unit |
Dimension(W*D*H) |
mm |
835x320x540 |
835x320x540 |
835x320x540 |
910x340x700 |
|
Packing (W*D*H) |
mm |
900x400x600 |
900x400x600 |
900x400x600 |
1035x375x755 |
|
|
Net/Gross weight |
Kg |
28/33 |
33/38 |
35/40 |
45/51 |
|
|
Thermostat type |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
||
|
Operation temperature |
Indoor(cooling/ heating) |
℃ |
17～32/0～30 |
17～32/0～30 |
17～32/0～30 |
17～32/0～30 |
|
Outdoor(cooling/heating) |
℃ |
17～52/-15～30 |
17～52/-15～30 |
17～52/-15～30 |
17～52/-15～30 |
|
|
Application area |
12-18 |
16-23 |
24-35 |
32-47 |
||
